Thursday, 9 January 2014

Staging and Main Deck Ply Cut

More Timber Work and Electronics Install

Since my last update I have been busy as usual.

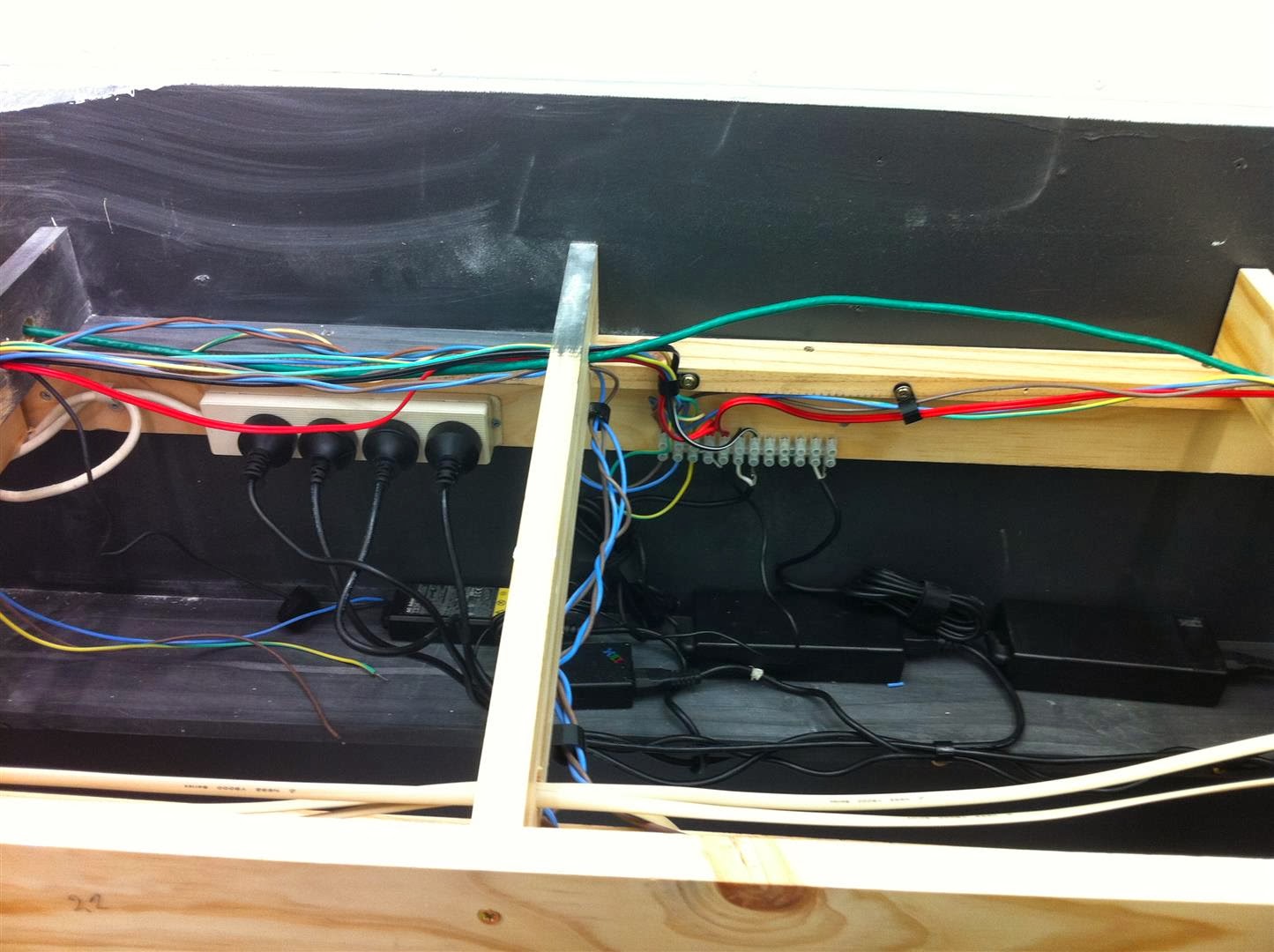

I have now completed the mounting of the electronics assemblies (all 15 of them) under the layout and wired them all into the track, power and loconet bus wiring.

This should save time sitting on the cold concrete floor later.

Here are a few pictures.

I have also now completed all of the timber cut outs for staging and the main deck of the layout.
This has been a huge task as the back boards and the main layout have very few straight lines.

Now all the boards are cut and in place. The next task is to install the staging and get the elevations set up between the main deck and staging.

Here are a few progress pics with all the timber done.
